Product details
| Specification | Details |
|---|---|
| Product Type | Conventional Fire Alarm Control Panel |
| Application | Fire and Smoke Detection Systems |
| Number of Detection Zones | 2 |
| Primary Input Voltage | 90–270V AC |
| Detector Supply Voltage | 24V DC |
| Standby Power | Supports 2 × 12V Backup Batteries |
| Maximum Detectors Per Zone | 30 |
| Alarm Sound Level | ≥100 dB (within 1 meter) |
| Communication Interface | RS-485 / RS-232 |
| Networking Mode | Alarm |
| Wiring Configuration | Sub-Line System |
| Weight (Without Battery) | 3 kg |
| Certification | CE |
Description

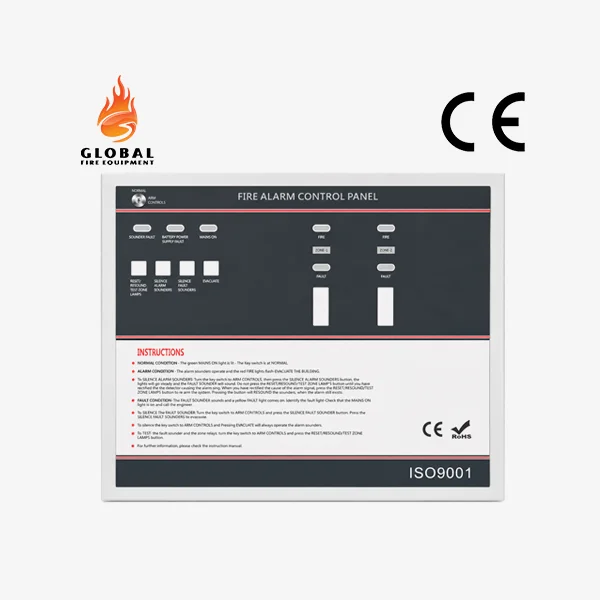

The 2 Zone Conventional Fire Alarm Control Panel is a reliable fire detection and alarm management solution designed for small to medium-sized commercial, residential, institutional, and industrial buildings. It continuously monitors connected fire detection devices and instantly activates alarm notifications when smoke or fire is detected, helping occupants respond quickly during emergencies. Supporting up to two independent detection zones, the panel enables efficient identification of the affected area, simplifying inspection and emergency response. Operating on a wide AC input range with a 24VDC detector supply, it ensures stable performance while supporting battery backup for uninterrupted operation during power failures. The system can accommodate up to 30 detectors per zone, making it suitable for a wide range of fire protection installations. With clear system monitoring, dependable alarm functionality, and compatibility with conventional fire alarm devices, this control panel provides an effective solution for maintaining building safety and compliance with fire protection requirements.
-
Supports 2 independent fire detection zones for accurate monitoring and fault identification.
-
Compatible with up to 30 conventional fire detectors per zone.
-
Provides a 24VDC detector output for reliable detector operation.
-
Operates on a wide AC input voltage range (90–270V) for stable performance.
-
Supports standby battery backup using two 12V batteries for continuous operation during power outages.
-
Delivers an audible alarm output of 100 dB or higher for clear emergency notification.
-
Supports RS-485/RS-232 communication for system integration and monitoring applications.
