Automatic Fire Protection for Unmanned Spaces

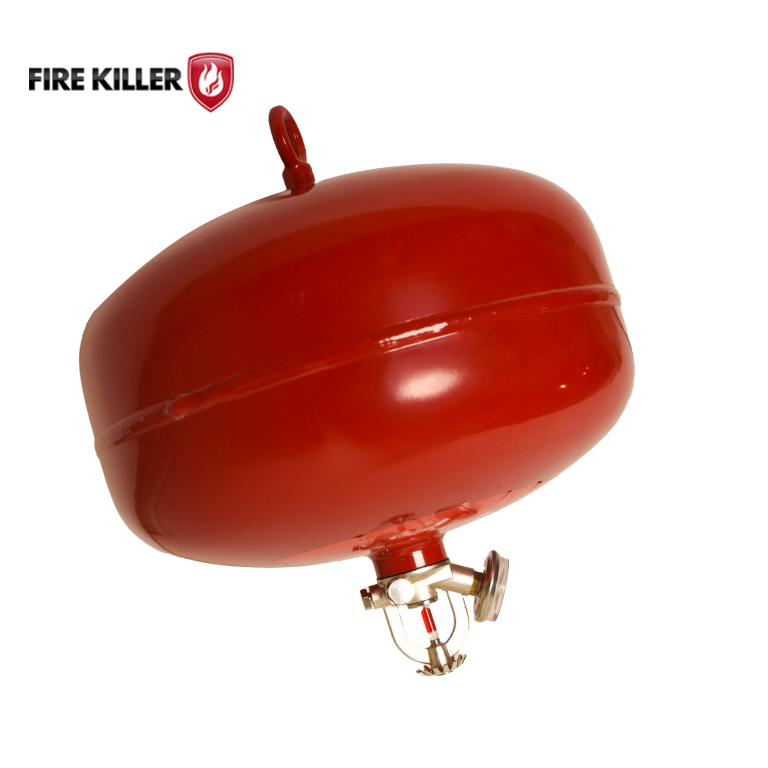

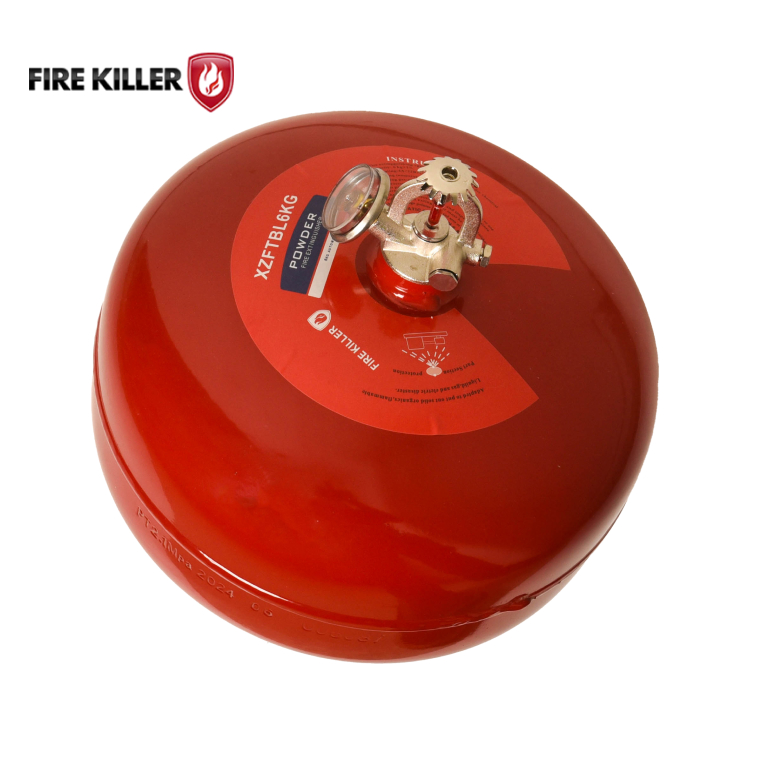

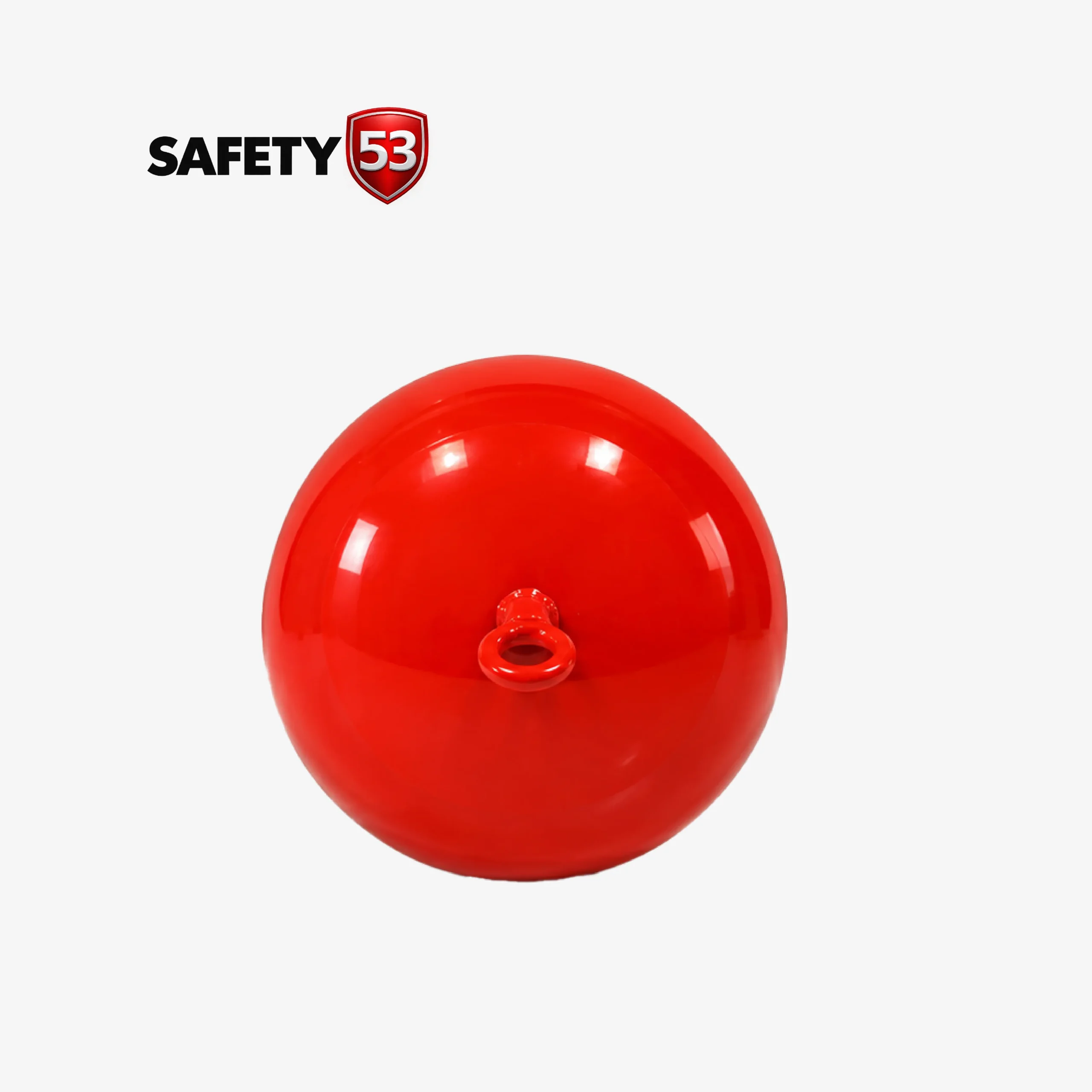

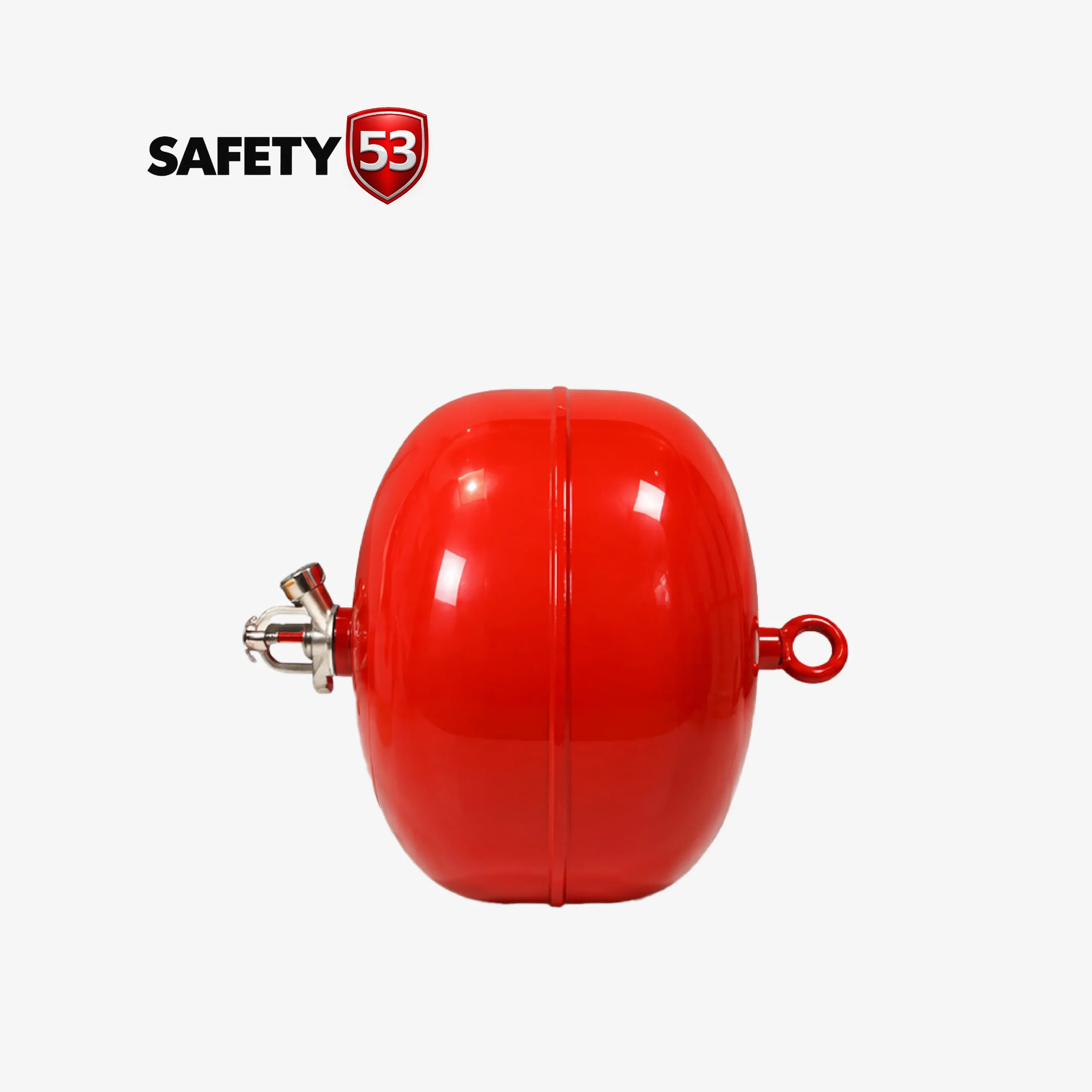

What happens if a fire starts in your electrical room at 2 AM when nobody is around? A manual extinguisher is useless if there is no one to pull the pin. That is exactly why the Safety 53 automatic fire ADCP-6KG exists. This ceiling-mounted unit acts as an automatic sentinel. It hangs directly above the hazard and waits. If a fire breaks out, it doesn’t need a human to operate it. It deploys the extinguishing agent instantly on its own.
How the Heat-Sensitive Activation Works

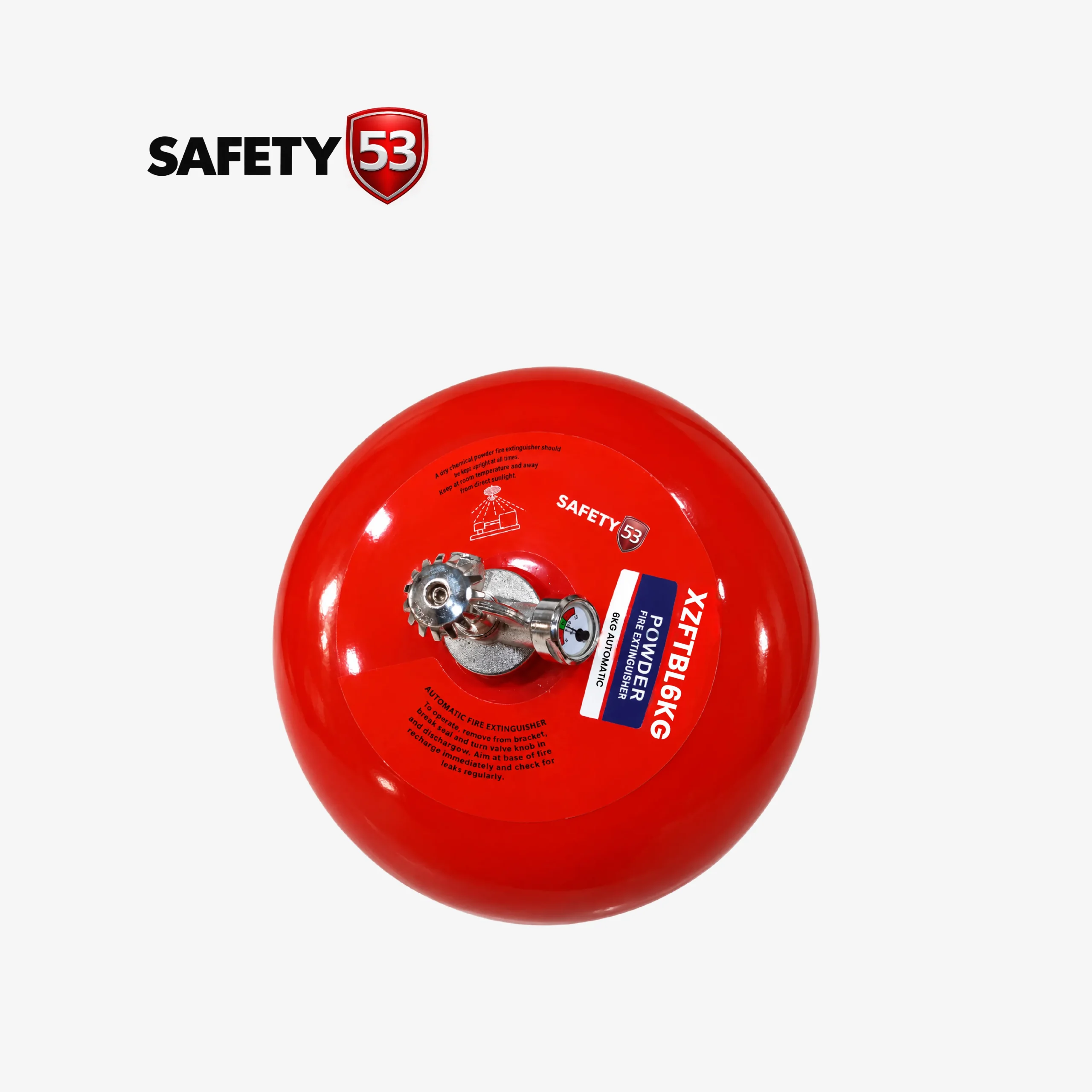

Inside the unit is a sealed glass bulb filled with a heat-sensitive liquid. When the temperature in the room rises to a critical 68°C, the liquid expands and shatters the glass bulb. This immediately releases the pressure, firing the 6 kg of ABC mono-ammonium phosphate powder downward. The powder covers the fire source completely, cutting off oxygen and stopping the blaze before it can spread to the rest of the building. The deflector shield at the bottom ensures the powder spreads in a wide, even pattern.
Why You Need It in High-Risk Zones
This automatic unit is built for spaces where you cannot rely on human intervention. It is perfect for electrical distribution panels, CNC machines, and server cabinets. Once it is installed on the ceiling using the provided brackets, it requires zero maintenance beyond a visual check. We supply these units to Karachi, Lahore, and Multan, with fast shipping to Sialkot, Gujrat, and other industrial hubs. Secure your facility with automatic protection today.
| Model | ADCP-6KG |
|---|---|
| Brand | Safety 53 |
| Product Type | Automatic Ceiling-Mounted Dry Powder Extinguisher |
| Capacity | 6 Kg |
| Activation Method | Heat-Sensitive Glass Bulb (68°C) |
| Extinguishing Agent | ABC Mono Ammonium Phosphate (DCP) |
| Fire Class | A, B, C & E (Electrical) |
| Coverage Area | Approx. 6 to 8 Cubic Meters (depending on hazard) |
| Working Pressure | 14 Bar (200 PSI) |
| Test Pressure | 25 Bar |
| Discharge Time | Instant Full Discharge |
| Cylinder Material | Steel Body with High Gloss Paint |
| Mounting Type | Ceiling Mounted with Deflector Shield |
| Operating Temperature | -20°C to +60°C |
| Certification Standard | ISO 7165 / PSQCA (Depending on Batch) |
| Application / Work Environment | Suitable | Reason |
|---|---|---|
| Electrical Control Rooms | ✓ | Automatically activates to put out electrical fires in unmanned panel rooms without risking human life. |
| Server Rooms and Data Centers | ✓ | Instantly suppresses fires in server cabinets. However, be aware that the powder will damage electronics, so clean-agent alternatives are preferred if budget allows. |
| Storage Rooms and Archives | ✓ | Protects unattended storage areas containing paper, cardboard, and textiles by dropping a blanket of powder directly over the fire. |
| CNC Machines and Boiler Rooms | ✓ | Ideal for enclosed machinery and boiler rooms where a fire could start when the area is locked or unattended. |
| High Voltage Substations (Above 1,000V) | ✕ | Do not use for high-voltage applications. Automatic CO2 or clean agent systems are required for substations above 1,000 Volts. |
| Residential Bedrooms or Living Areas | ✕ | Not recommended for living spaces due to the risk of accidental activation and the massive cleanup required. Use only in unoccupied technical rooms. |
FAQ's
Inside the unit is a glass bulb filled with a special liquid. When a fire breaks out and the room temperature rises to 68°C, the liquid expands and bursts the bulb. This triggers the release valve, instantly discharging the dry powder.
No, it is too heavy for a standard false ceiling. It must be securely mounted to a solid concrete ceiling or a heavy-duty structural bracket. The included hardware is designed for solid surfaces to ensure it doesn’t fall when it activates.
Not at all. It is completely mechanical. There are no wires, batteries, or power sources required. This makes it highly reliable even during a power outage.
The cylinder itself can be refilled, but you will need to replace the shattered glass bulb and the extinguishing powder. It is highly recommended to have it serviced by a professional fire safety technician.
We dispatch orders quickly across Pakistan. We deliver directly to Karachi, Lahore, and Multan, with reliable shipping to Sialkot, Gujrat, Peshawar, and other industrial cities. Contact us for bulk installation quotes.
